- 2nd electric patio awning with integrated LED lights
- 32 in. 4K outside Smart LED TV
- 32 in. 4K Smart LED bedroom TV
- 6-point hydraulic auto-leveling system
- Cellular prep for 4G WiFi antenna and JAYCOMMAND®
- Central vacuum system with dust port
- Day/night roller shades in living room
- Frameless dark tinted safety-glass windows
- Free-standing (no pedestal) table with leaf, (2) free-standing and (2) folding chairs
- Fresh Water Drinking System (patented) for fresh drinking water at the kitchen sink and water/ice dispensers in the residential refrigerator
- GE 21 cu. ft. residential refrigerator with 1800W inverter
- GE Profile Series 30 in. residential convection microwave with built in air fryer
- GE Profile Series residential 24 in. range (3.7 cu. ft. with 9100 BTU high output burner)
- High gloss gelcoated sidewalls
- JAYCOMMAND® “Smart RV” system
- LED fireplace with electric space heater
- MORryde® StepAbove™ entrance steps (main entrance) with strut assist
- Oversized multi-battery compartment (industry leading room for 4-6 batteries)
- Powered 50-amp cord reel
- Residential solid-surface kitchen countertop with solid-surface sink covers
- Residential walk-in shower with shampoo/soap holder, teak seat and shower tower
- Solid hardwood cabinet stiles
- Washer/dryer prep
- Under-sink dishwasher
Pinnacle
![2024 Jayco Pinnacle](https://christiesrv.com/wp-content/uploads/brands/2024-Jayco-Pinnacle.png)
- 2024
- Pinnacle
Weight Range
- 13290 lbs.
- to
- 15350 lbs.
Available Colours
Modern Farmhouse
Vintage Farmhouse
The Pinnacle features the new Magnum XL6 roof rafter system for superior construction and 3,000 pound receiver/tow hitch with four-way pin connector on all its floorplans.

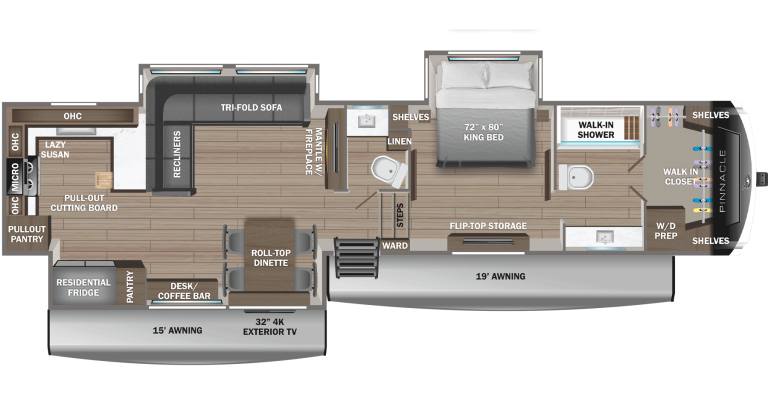

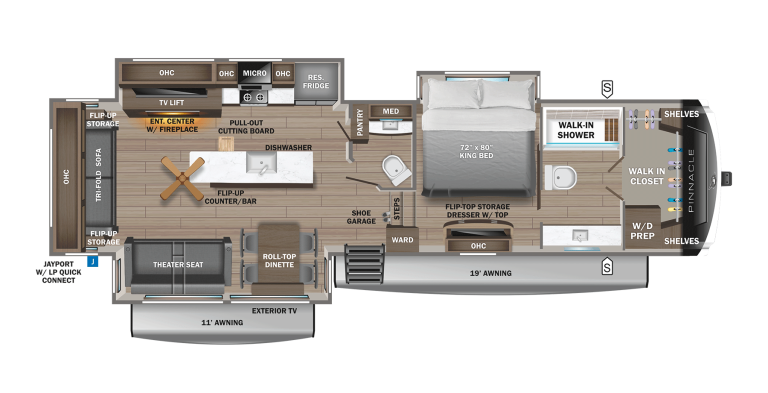

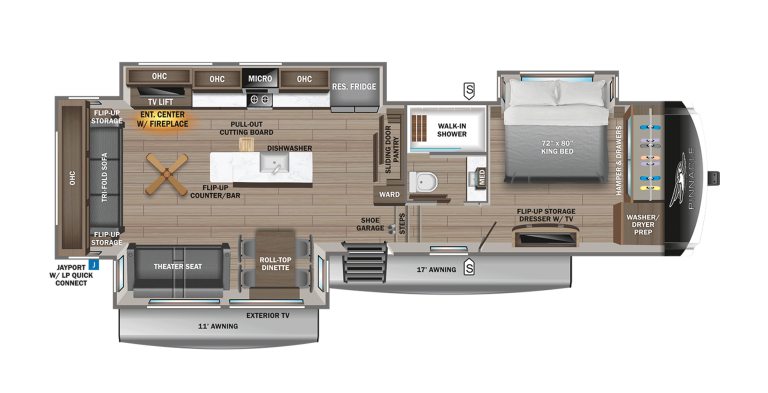

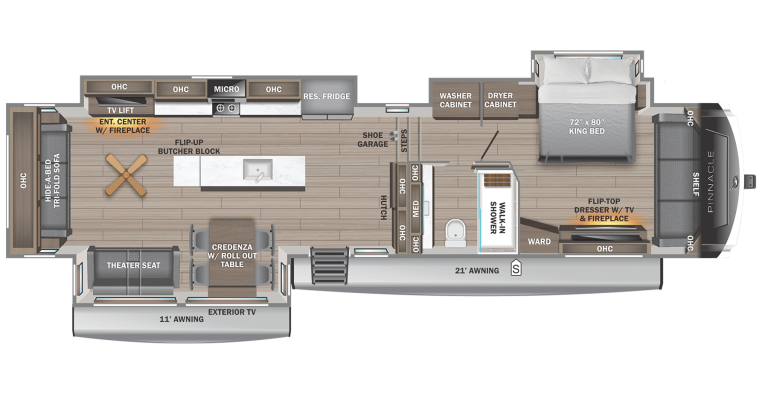

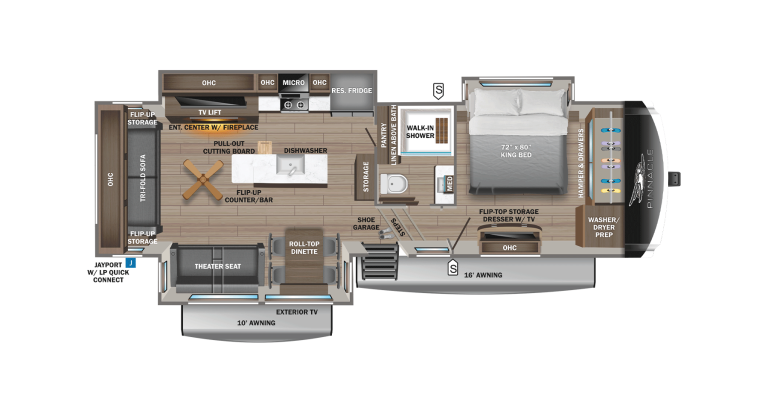

Pinnacle Floorplans
Pinnacle Standard Features and Options
5 Star Handling Package (Mandatory)
- 17.5 in. 16 ply 'H' rated Uniroyal tires
- Dexter® Axles with ABS and Tow Assist - includes Nev-R-Adjust® brakes and E-Z Lube® hubs
- MORryde® LRE-4000™ rubberized suspension
- MORryde® rubber pin box
- Wet bolt fasteners, bronze bushings and 4,000 lb. leaf springs
Luxury Package (Mandatory)
Options
- 20 cu. ft. 12V refrigerator
- 3rd 15,000 BTU ducted A/C
- 5,500W Onan® Microquiet generator
- 7K hydraulic disc brake package (ABS N/A with disc brakes)
- 8K hydraulic disc brake package (ABS N/A with disc brakes)
- Butler’s pantry (in place of half bath 38FLGS)
- Frameless dual-pane tinted safety-glass windows
- Front wardrobe in place of front windshield and sofa lounge (36SSWS)
- Full body paint- Sand, Steel and Diamond
- Generator prep
- MORryde independent suspension with 8K axles and disc brakes (ABS not available)
- Outside griddle for JayPort system (32RLTS, 36FBTS, 36KPTS, 36SSWS)
- Overlander 2 Solar Package: 30-amp controller, (1) 1800W inverter and (2) 200W solar panels
- Overlander 4 Solar Package: (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C, battery monitor, energy management system, roof pre-wire for additional solar panels, generator prep capable and heavy gauge steel battery enclosure
- Overlander EXT Solar Package: 3,000W inverter/charger with internal 50-amp transfer switch, energy management system, (6) solar panels with 200W each, (6) 100-amp/hour lithium heated batteries, 12V DC A/C in bedroom, DC to DC battery charger, 100-amp MPPT controller management, generator prep capable
- Queen residential foam-top mattress
- Sani-Con® Turbo waste management system
- Slideout awning(s) (quantity varies by model)
- True interior design choice (Modern Farmhouse or Vintage Farmhouse)
- Truma on-demand hot water system
- Wireless backup/side view/front entry door observation kit with 7 in. monitor
Standard Exterior Equipment
- (3) 40 lb. LP propane bottles with auto regulator (120 lb. max LP system)
- 102 in. widebody construction
- 12 in. structural steel I-beam with 10 in. steel drop frame
- 120V heat blankets on all tanks plus 12V heat tape on fresh water line
- 3,000 lb. tow hitch with 4-way pin
- Battery disconnect
- Built in sewer hose carrier
- Climate Shield™ zero-degree tested weather protection:
- 40,000 BTU output furnace
- Double layer fiberglass batt insulation (roof and floor)
- Fully enclosed and heated underbelly (ducted)
- PEX plumbing, 2 in. block foam and reflective foil
- Custom automotive-grade vinyl exterior graphics package
- Digital TV antenna with Wi-Fi extender
- Exterior marine-grade speakers with Bluetooth® controller
- Frameless dark tinted safety-glass windows
- Fully enclosed, universal docking center:
- Black tank flush
- Independent satellite wiring
- Quick-connect outside shower
- Selectable water connections
- Whole coach cable hookups
- Winterization and sanitation
- Inverter pre-wire to select outlets
- JayPort outside griddle prep (standard on all floorplans without a standard outside kitchen)
- JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patented)
- LED exterior lighting package
- Magnum Truss™ XL6™ Roof System (strongest tested roof in the industry) with Alpha roof membrane system with limited lifetime warranty
- Painted fiberglass front and rear cap with clear coat and built-in specialty LED lighting
- Pass-through storage with Slam-latch™ baggage doors
- Skirt metal enclosed drop frame
- Stronghold VBL™ aluminum framed and vacuum bond laminated gelcoated fiberglass exterior walls (including slide room end walls)
- Under-mounted spare tire
- Water heater bypass
Standard Interior Equipment
- 12V charging station
- 5/8 in. tongue-and-groove joined plywood floor and 3/8 in. roof decking
- Bathroom skylight
- Built-in laundry hamper in wardrobe (select models)
- Carbon monoxide and LP detector
- Cedar-lined front wardrobe closet
- Ceiling fan (select models)
- CPAP prepped bedroom
- Extra 120V power outlets in kitchen and slide rooms
- Farmhouse stainless steel kitchen sink
- Flip-up countertop extension with 24 in. x 24 in. butcher block bar top (select models)
- Flip-up hidden storage in bedroom chest of drawers (select models)
- Flip-up tabletop storage next to tri-fold sofa (select models)
- Gas-strutted under-bed storage
- Handcrafted hardwood glazed doors, stiles, drawers and trim
- JayVoice voice command system - controls lighting, A/C and furnace
- LED accent lighting above slideouts
- LED backlit custom framed mirror and medicine cabinet
- LED interior lighting throughout
- Porcelain toilet with foot flush
- Pull-out spice rack above microwave (select models)
- Pull-out utility drawer under kitchen sink
- Residential quilted bedspread and pillows
- Residential-grade, pull-out kitchen faucet
- “Shoe garage” in hallway step (select models)
- Soft close, heavy-duty, 75 lb. full extension, steel ball-bearing drawer guides
- Solid hardwood slide fascia
- Toe kick nightlights in bedroom, bathroom and kitchen
- Tri-fold hide-a-bed sofa with sleep surface (select models)
- Vessel bowl sink with high rise faucet in main bath
- Vinyl flooring (made in the USA) throughout including slide rooms
Customer Value Package (Mandatory)
- 15,000 BTU “Whisper Quiet” A/C (bedroom)
- 15,000 BTU “Whisper Quiet” A/C with heat pump (main)
- 16 gal. gas/electric DSI water heater
- 50 in. 4K SMART LED HDTV with fully digital HDMI® output and two additional HDMI® cables
- Backup, main entrance door and side observation security camera prep (includes a power switch in the bedroom to use the optional 7 in. monitor for security)
- Custom machined aluminum rims
- Electric patio awning with integrated LED lights
- Hidden hinges on cabinet doors
- JBL® home entertainment system with sound bar and subwoofer
- Keyed-Alike™ lock system (single key for all doors/locks)
- MORryde Safe-T-Rail grab handle
- Residential king (72 in. x 80 in.) mattress with under-bed storage
- Rooftop and ground solar prep
- Wireless remote control system (includes Bluetooth® wireless interior controls) with dimmer switches
Pinnacle Inventory
No Current Inventory. Please call for ordering information
