North Point

2023 Jayco North Point Fifth Wheel

Weight Range

Available Colours

Classic Cottage
Modern Farmhouse
Enjoy our North Point floorplans with four-burner residential ovens, five star handling package and walk-in shower with a luxury looking teak seat. The BM Pro Jay Command allows you to control your coach with voice command, whichever floorplan is chosen. New for this year, a two bedroom, two full bath, loft model floorplan that’s sure to be a hit with adults and kids alike.

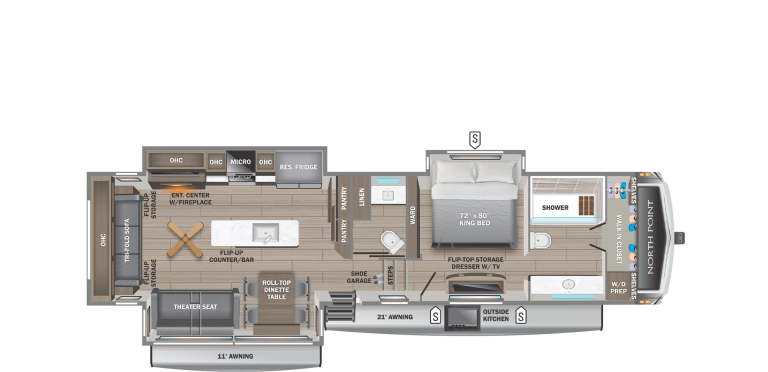

North Point Floorplans

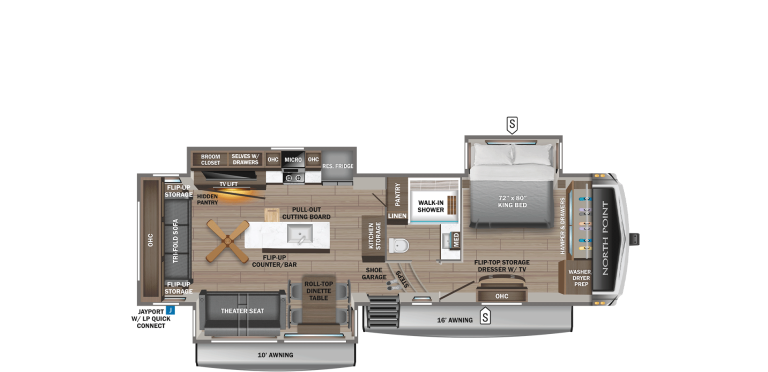

310RLTS

2023-Jayco-North-Point-310RLTS-Floorplan

340CKTS

2023-Jayco-North-Point-340CKTS-Floorplan

373BHOK

2023-Jayco-North-Point-373BHOK-Floorplan

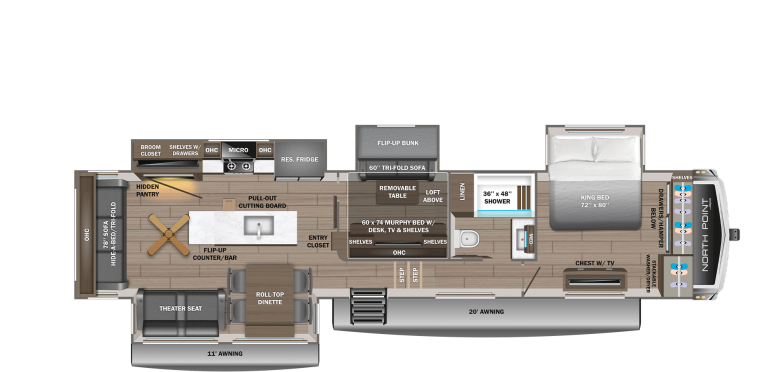

377RLBH

2023-Jayco-North-Point-377RLBH-Floorplan

380RKGS

2023-Jayco-North-Point-380RKGS-Floorplan

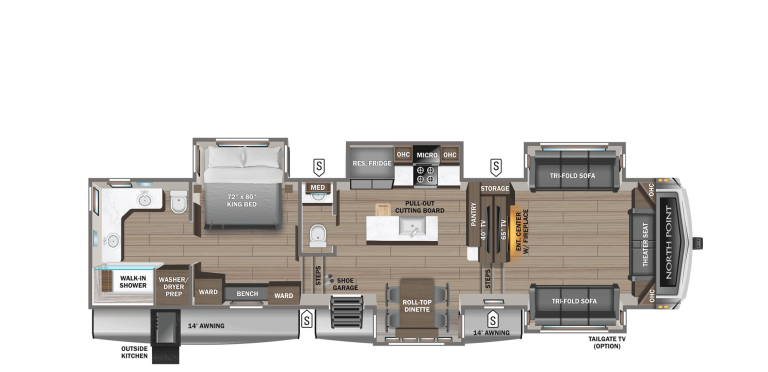

382FLRB

2023-Jayco-North-Point-382FLRB-Floorplan

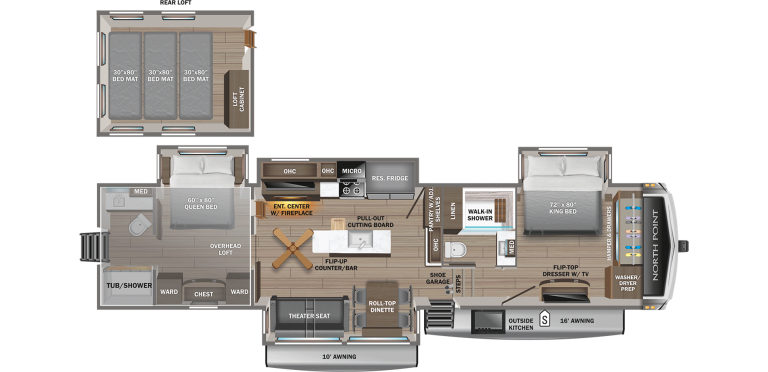

390CKDS

2023-Jayco-North-Point-390CKDS-Floorplan

North Point Standard Features and Options

Standard Exterior Equipment
  • 12 in. structural steel I-beam with 10 in. steel drop frame
  • Stronghold VBL™ aluminum framed and vacuum bond laminated gelcoated fiberglass exterior walls (including rear wall and slide room end walls)
  • Magnum Truss™ XL6™ Roof System (strongest tested roof in the industry) with one-piece, seamless roof material with a 20 year warranty
  • Climate Shield™ zero-degree tested weather protection:
  • Fully-enclosed and heated underbelly (ducted)
  • 40,000 BTU output furnace
  • Double layer fiberglass batt insulation (roof and floor)
  • PEX plumbing, 2 in. block foam and reflective foil
  • JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patented)
  • Painted fiberglass front cap with double clear coat and built-in specialty LED lighting
  • Frameless, dark tinted, safety-glass windows
  • Custom automotive-grade vinyl exterior graphics package
  • Skirt metal enclosed drop frame
  • LED exterior lighting package
  • Dual 30 lb. propane bottles with auto regulator
  • Doorside compartment framed and vented for third propane bottle
  • Pass-through storage with Slam-latch™ baggage doors
  • Digital TV antenna with Wi-Fi extender
  • Exterior marine-grade speakers
  • Fully enclosed, universal docking center:
  • Selectable water connections
  • Quick-connect outside shower
  • Black tank flush
  • Winterization and sanitation
  • Independent satellite wiring
  • Whole coach cable hookups
  • Water heater bypass
  • Battery disconnect
  • Under-mounted spare tire
  • JayPort system for outside griddle (all floorplans without a standard outside kitchen)
  • Built in sewer hose carrier
  • 3,000 lb. tow hitch with 4-way pin
  • Inverter pre-wire to select outlets
Standard Interior Equipment
  • Solid hardwood slide fascia
  • Handcrafted hardwood glazed doors and drawers
  • 5/8 in. tongue-and-groove joined plywood floor decking
  • Vinyl flooring (made in the USA) throughout (includes slideout floors)
  • Ceiling fan (select models)
  • LED interior lighting throughout
  • LED accent lighting above slideouts
  • Tri-fold hide-a-bed sofa with residential sleep surface (select models)
  • Dual USB charging ports throughout
  • “Shoe garage” in hallway step (select models)
  • Flip-up tabletop storage next to tri-fold sofa (select models)
  • JayVoice voice command system- controls lighting, A/C and furnace
  • Soft close, heavy-duty, 75 lb. full-extension, steel ball-bearing drawer guides
  • Stainless steel kitchen sink
  • Pull-out spice rack above microwave (select models)
  • Residential-grade, pull-out kitchen faucet
  • Extra 120V power outlets in kitchen and slide rooms
  • Flip-up countertop extension with 24 in. x 24 in. butcher block bar top (select models)
  • Pull-out utility drawer under kitchen sink
  • Toe kick nightlights in bedroom and bathroom
  • Residential quilted bedspread and pillows
  • Gas-strutted under-bed storage
  • P.A.P. prepped bedroom (includes 120V outlets and night stands with cup holders)
  • Carbon monoxide and LP detector
  • Flip-up hidden storage in bedroom chest of drawers (select models)
  • Built-in laundry hamper in wardrobe (select models)
  • Cup holders in bedroom nightstands
  • Bathroom skylight
  • LED backlit custom framed mirror and medicine cabinet
  • Porcelain toilet with foot flush
  • Vessel bowl sink with high rise faucet in main bathroom
Customer Value Package (Mandatory)
  • 15,000 BTU “Whisper Quiet” A/C (main)
  • 15,000 BTU “Whisper Quiet” A/C (bedroom)
  • Electric patio awning with integrated LED lights
  • Gas/electric DSI water heater
  • Custom machined aluminum rims
  • Keyed-Alike™ lock system (single key for all doors/locks)
  • Rooftop and ground solar prep
  • Backup, main entrance door and side observation security camera prep (includes a power switch in the bedroom to use the optional 7 in. monitor for security)
  • XL grab handle
  • 50 in. 4K Smart LED HDTV with fully digital HDMI® output and two extra HDMI cables
  • Home entertainment system with subwoofer
  • Hidden hinges on cabinet doors
  • Refrigerator temperature sensors linked to JAYCOMMAND®
  • Residential king (72 in. x 80 in.) mattress with under-bed storage
  • Wireless remote control system (includes Bluetooth® wireless controls) with dimmer switches
5 Star Handling Package (Mandatory)
  • 17.5 in. 'H' rated Uniroyal tires
  • MORryde® rubber pin box
  • Dexter® Axles with Nev-R-Adjust® brakes, E-Z Lube® hubs, and 4,000 lb. leaf springs
  • MORryde® CRE-3000™ rubberized suspension
  • Wet bolt fasteners and bronze bushings
Luxury Package (Mandatory)
  • 6-point hydraulic auto-leveling system
  • 2nd electric patio awning with integrated LED lights
  • MORryde® StepAbove™ entrance steps with strut assist (main entrance)
  • JAYCOMMAND® “Smart RV” system
  • Cellular prep for 4G WiFi repeater and JAYCOMMAND® “Smart RV” system
  • High gloss gelcoated sidewalls
  • Oversized multi-battery compartment (industry leading room for 4-6 batteries)
  • Frameless dark tinted safety-glass windows
  • Privacy roller shades
  • Free-standing (no pedestal) table with leaf and (2) free-standing and (2) folding chairs
  • LED fireplace with electric space heater
  • Central vacuum system with dust port
  • Fresh Water Drinking System (patent-pending) (connects to ice maker)
  • 30 in. residential microwave
  • 21 cu. ft. residential refrigerator with 1800W inverter
  • Residential 24 in. Insignia™ stove (3.73 cu. ft. with 12,000 BTU high output burner)
  • Residential solid-surface kitchen countertop with bamboo sink cover and strainer
  • Washer/dryer prep
  • 32 in. 4K Smart bedroom TV
  • Residential walk-in shower with shampoo/soap holder and teak seat
Options
  • True interior design choice (Modern Farmhouse or Classic Cottage)
  • Customer Value Package: 15,000 BTU central air with heat pump
  • Extreme Weather Package: 120V heated holding tank pads and 12V wrapped and heated fresh water line
  • Wireless backup/side view/front entry door observation kit with 7 in. monitor
  • Queen residential foam top mattress
  • 39 in. 4K Smart TV in cargo
  • Sani-Con® Turbo waste management system
  • Generator prep with 120 lb. max LP system (3) 40 lb. LP bottles
  • 5,500W Onan® Microquiet generator
  • Frameless dual pane tinted safety-glass windows
  • Slideout awning (quantity varies by model)
  • 7K hydraulic disc brake package
  • 8K hydraulic disc brake package
  • 3rd-15,000 BTU ducted A/C
  • 18 cu. ft. Norcold® Polar Max gas/electric refrigerator
  • Truma on-demand hot water system
  • Outside griddle for JayPort system (includes LP quick-connect) (310RLTS, 373BHOK, 380RKGS)
  • Overlander 2 Solar Package: (30-amp controller, (1) 800W inverter and (2) 200W solar panels)
  • Overlander 4 Solar Package: (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C, battery monitor, energy management system, roof pre-wire for additional solar panels, generator prep capable and heavy gauge steel battery enclosure
  • Overlander EXT Solar Package: 3,000W inverter/charger with internal 50-amp transfer switch, energy management system, (6) solar panels with 200W each, (6) 100-amp/hour lithium heated batteries, 12V DC A/C in bedroom, DC to DC battery charger, 100-amp MPPT controller management, generator prep capable

North Point Inventory

No Current Inventory. Please call for ordering information
