Eagle HT FW
- 2023
- Eagle HT FW
Weight Range
- 7805 lbs.
- to
- 10465 lbs.
Available Colours
American Craftsman
Modern Farmhouse
Bring the whole family along in one of the many floorplans the Eagle HT fifth wheel offers. Whether you want a more traditional floorplan or a new take on a layout like triple bunks, enjoy the ride with Eagle HT fifth wheel.

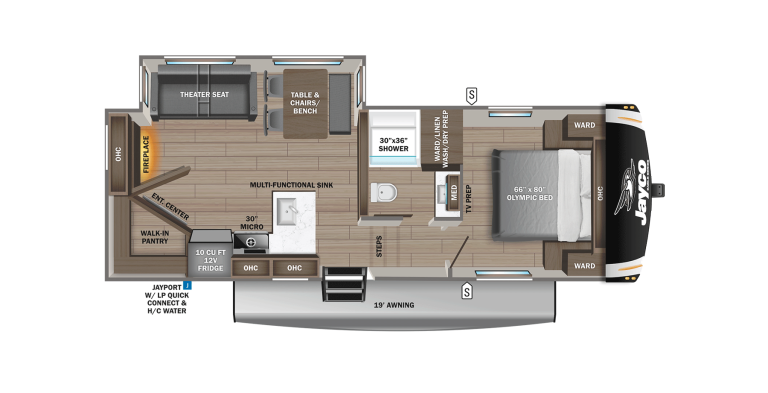

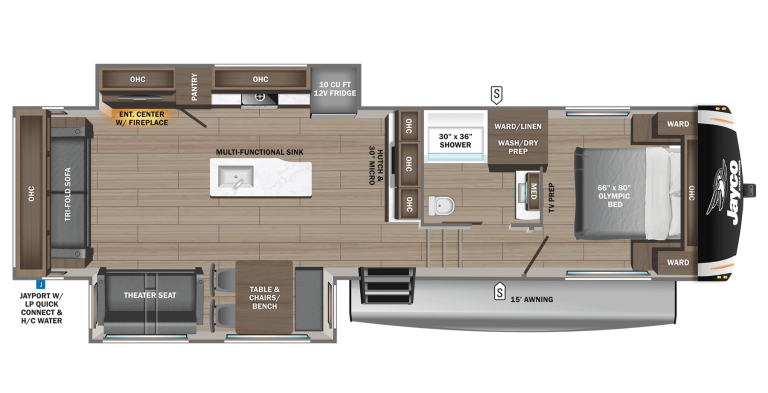

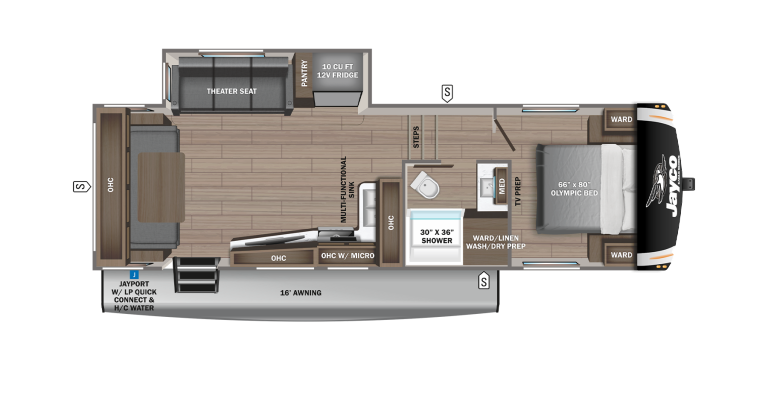

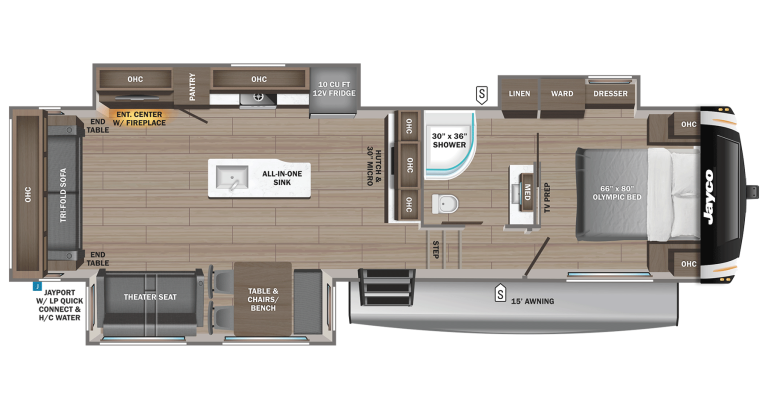

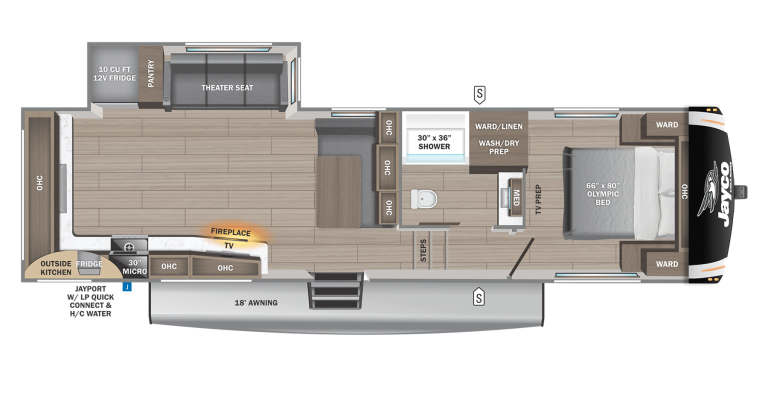

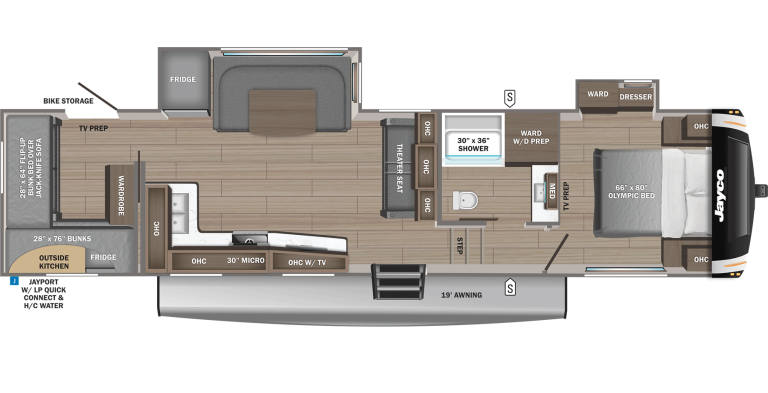

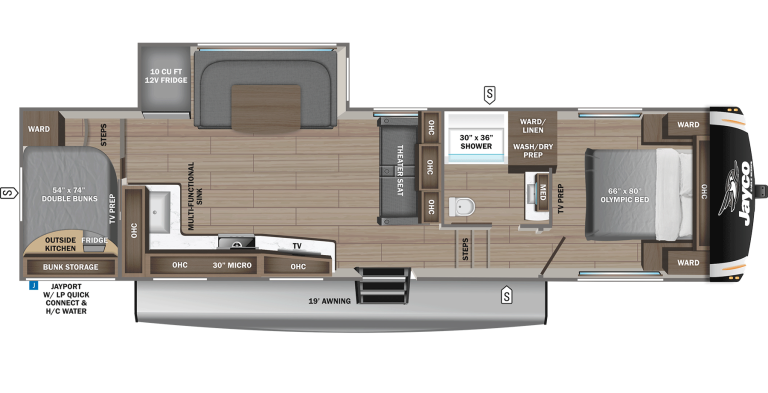

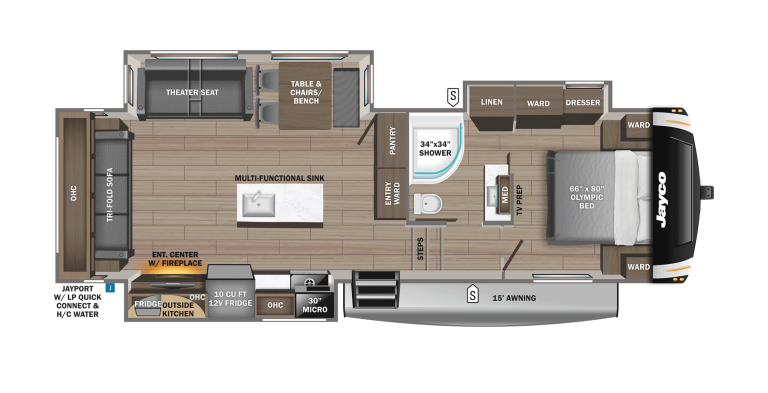

Eagle HT FW Floorplans
Eagle HT FW Standard Features and Options
Standard Exterior Equipment
- StrongholdVBL™ aluminum framed and vacuum bond laminated gelcoated fiberglass exterior walls (including rear wall and slide room end walls)
- Magnum Truss™ Roof System with one piece seamless roofing material with 20 year warranty
- Climate Shield™ zero-degree tested weather protection:
- Fully enclosed and heated underbelly (ducted)
- 35,000 BTU output furnace
- Double layer fiberglass batt insulation in ceiling and floor
- Double sided radiant barrier insulation (roof, floor and behind cap)
- PEX plumbing
- HELIX Cooling System™ (industry exclusive):
- Jayco exclusive insulated dual duct design
- Directional and closeable A/C vents
- Larger return air vents with user accessible filters
- JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patented)
- Painted fiberglass front cap with built-in specialty LED lighting
- Custom automotive-grade vinyl exterior graphics package
- LED exterior lighting package
- Detachable shore power cord
- Dual 30 lb. propane bottles with auto regulator
- Pass-through storage with Slam-latch™ baggage doors
- Digital TV antenna with Wi-Fi prep
- Dual channel exterior marine-grade speaker
- Fully enclosed, LED-lighted universal docking center:
- Selectable water connections
- Quick-connect outside shower
- Black tank flush, winterization, and sanitization
- Independent satellite and whole coach cable hookups
- Water heater bypass
- Battery disconnect
- Under-mounted spare tire (Goodyear® Endurance®- made in the USA)
- LP quick-connect
- Slide topper/awning prep
- “Industry’s BEST” outside kitchen (select models)
Standard Interior Equipment
- Solid hardwood slide fascia
- Handcrafted and glazed doors, drawers and trim
- Heavy-duty, 75 lb., full-extension, steel ball-bearing drawer guides
- 5/8 in. tongue-and-groove joined plywood floor decking
- Residential vinyl flooring (made in the USA)
- Residential vinyl flooring in slideouts (no carpet)
- LED dimmer switches (multiple locations)
- Tri-fold hide-a-bed sofa with residential sleep surface (select models)
- Theater seating (select models)
- Stainless steel kitchen sink
- Matte black kitchen faucet with pull-out sprayer
- Dual USB charging ports (multiple locations)
- Extra 120V power outlets in kitchen and slide rooms (where applicable)
- Residential quilted bedspread and pillows
- Gas-strutted under-bed storage
- Inverter pre-wire (multiple locations)
- C.P.A.P. prepped bedroom
- Carbon monoxide and LP detector
- Bathroom skylight
- LED backlit medicine cabinet with custom framed mirror
- Bathroom tile backsplash
- Blue LED nightlights in bathrooms
- Porcelain foot flush toilet
Customer Value Package (Mandatory)
- MORryde® StepAbove™ entrance steps (main entrance) with blue LED light
- 15,000 BTU “Whisper Quiet” A/C
- 50-amp service with dual A/C ducts and second A/C prep
- Electric patio awning with integrated dimmable LED lights
- 6 gal. gas/electric water heater
- Custom machined aluminum rims
- Rear 2 in. towing receiver with 4 pin connector
- Keyed-Alike™ lock system (single key for all doors/locks)
- Rooftop and ground solar prep by Go Power!®
- Security monitor prep- observation camera prep (rear, sides and entrance door)
- Hidden hinges on cabinet doors
- Upgraded friction hinge entrance door with XL grab handle
- LED Smart HDTV with fully digital HDMI® output
- 12V A/V system with Bluetooth® and HDMI®
- Stainless steel range with glass cover
- Stainless steel 30 in. over the range microwave
- Residential queen (60 in. x 80 in.) mattress with under-bed storage
- Rain-proof bathroom power vent
Luxury Package (Mandatory)
- Electric auto-leveling
- Rotational pin box
- JAYCOMMAND® “Smart RV” system (Pro tablet)
- 8 cu. ft. gas/electric refrigerator with wooden panel inserts
- Blackout roller shades
- Residential style glass shower doors
- Tire Pressure Monitoring System (TPMS)
4 Star Handling Package (Mandatory)
- Goodyear® Endurance® tires (made in the USA, load range ‘E’)
- Dexter® Axles with Nev-R-Adjust® brakes and E-Z Lube® hubs
- MORryde® CRE-3000™ rubberized suspension
- Wet bolt fasteners, bronze bushings, and shock absorber prep
Options
- Dry Camping Package (generator prep and extra LP capacity)
- Extreme Weather Package with 110V heat pads (110V heat pads with 12V heat tape on main water line)
- 360° security kit with 7 in. monitor
- Overlander 2 Solar Package: (2) 200W solar panels, 30-amp digital controller and 1800W inverter
- Overlander 4 Solar Package: (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C, battery monitor, energy management system, roof pre-wire for additional solar panels, generator prep capable and heavy gauge steel battery enclosure
- Frameless dual-pane tinted safety-glass windows
- Canadian Standards (CSA)
- Free-standing rustic table with leaf and bench seat, 2 storage and 2 folding chairs
- Free-standing rustic table with leaf and 2 storage and 2 folding chairs
- Booth dinette (select models)
- LED fireplace and electric heater (standard on select models)
- Wall-hugger theater seating (standard on select models)
- 10 cu. ft. 12V refrigerator
- 4 door gas/electric refrigerator (select models)
- 2nd 15,000 BTU A/C ducted in bedroom
- Outside griddle for JayPort System
- Residential 72 in. x 80 in. king size mattress
Eagle HT FW Inventory
No Current Inventory. Please call for ordering information
